Nexstep Medical
All'InCath 035M*
Designed to make the procedure
simpler, faster and smarter
The All’InCath 035M is a balloon catheter for percutaneous transluminal angioplasty (PTA) that allows injection of contrast agents in the same device.
*: FDA 510(k) approved in the US
Angioplasty and Angiography in
an inseparable combination!
Nexstep Medical
Angioplasty
and Angiography
Designed to make the procedure
simpler, faster and smarter
The All’InCath 035M is a balloon catheter for percutaneous transluminal angioplasty (PTA) that allows injection of contrast agents in the same device.
Combined applications for maximum efficiency
– Treat the vessel by inflating a semi-compliant balloon
– Provide an angiographic visualization of the vascular system, before and after dilatation, by injection of radiopaque contrast agent using the same catheter, guidewire in place.
This device is appropriate for the treatment of arterial lesions located in the peripheral vascular system, including the iliac, femoral, popliteal and renal arteries, as well as obstructive lesions of native or synthetic arteriovenous dialysis fistulas.
THE NEW STANDARD for PTA angioplasty procedures
Nexstep Medical
About
the All’InCath 035M
The All’InCath 035M comes in two different lengths (80 and 120cm) and a wide range of balloon sizes.
Balloon
1 of 9 +Radio-opaque
tip
Radio-opaque
marker
Holes for fluid injection
4 of 9 +Radio-opaque
marker
Radio-opaque
marker
Balloon inflation / deflation port
7 of 9 +Guide wire port
8 of 9 +Fluid port
9 of 9
Radio-opaque markers
3 of 8 +Hole for fluid injection
4 of 8 +Radio-opaque markers
5 of 8 + Balloon inflation / deflation port 6 of 8 + Fluid port 7 of 8 +Fluid port

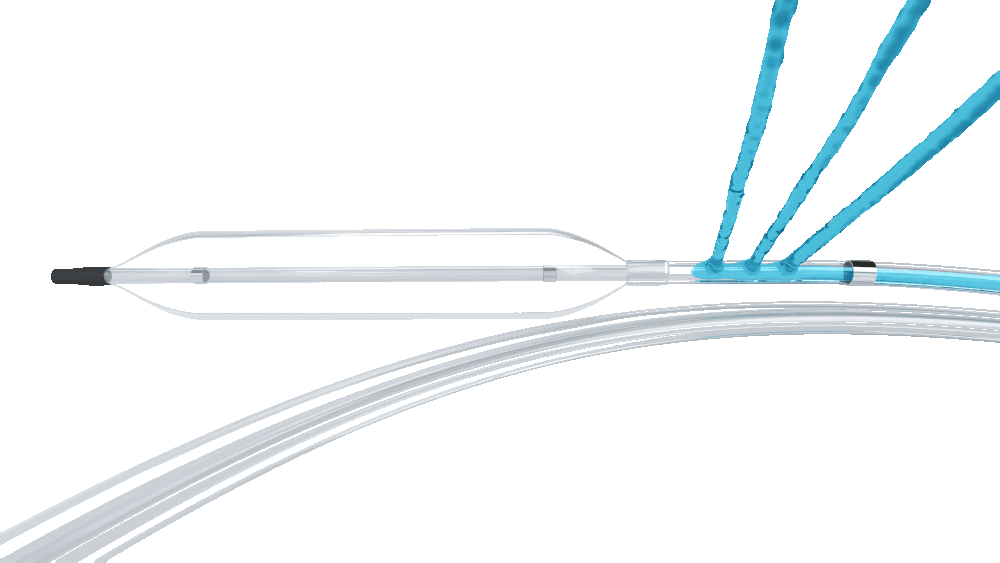

8 of 8The body of the catheter consists of the independent channels allowing the injection of contrast agent and inflation-deflation of the balloon, while holding the guide wire in place.
The injection system consists of three (3) holes located upstream and near the angioplasty balloon for the delivery of the contrast agent when the balloon is either inflated (vessel occluded) or deflated. A radiopaque marker, located on the proximal side of the holes, makes it possible to visualize the injection site.
The balloon mounted at the distal end of the catheter has two radiopaque markers indicating the dilation section of the balloon, and allowing its positioning at the lesion site. The balloon is inflated to a known diameter for a specific pressure.

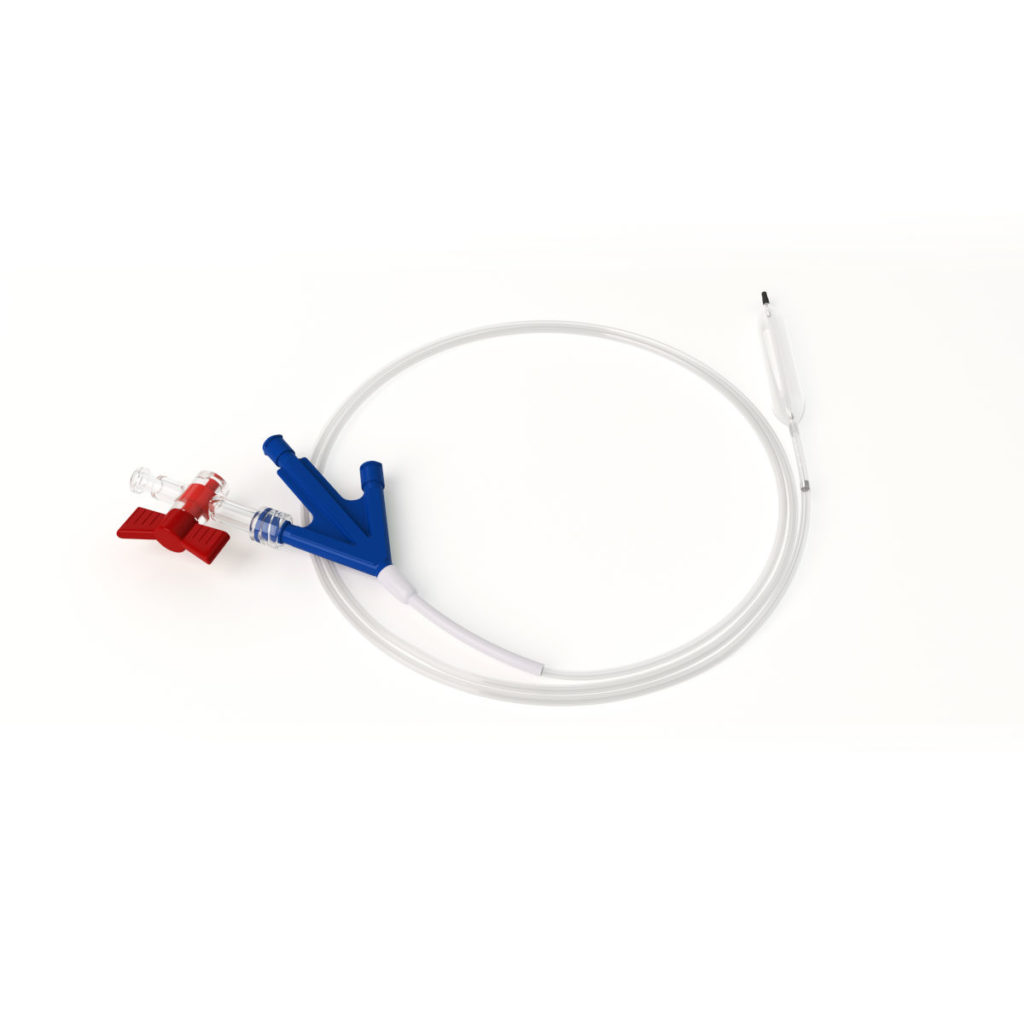

The proximal end of the catheter includes a three-port hub, connected to the lumens on the body of the catheter:
- The central port allows the insertion of the guidewire.
- The second port is used for balloon inflation/deflation.
- The third port, fitted with a stopcock valve, is used for injecting contrast agent.
The catheter tip is tapered, flexible and radiopaque, which facilitates its monitoring during catheter navigation.
Nexstep Medical
Wide range
of sizes available
The All’InCath 035M comes in two different lengths (80 and 120cm) and a wide range of balloon sizes.
The All’InCath 035M is avalable for sale exclusively in USA. Federal (United States) law restricts this device to sale by or on the order of a physician.
Nexstep Medical
A versatile and
multidisciplinary team
NexStep Medical, a French medical device company, was founded in 2014 by three partners:
a vascular and endovascular surgeon and two active investors.
On its first active market in the US (510(k) delivered) NexStep proposes to make PTA procedures simpler, faster and smarter, and thus facilitate/optimize angioplasty in its daily practice.
Philippe Urbain
Pierre Sarradon
David Curie
Kim Sabourin
Diane Marceau
C. Sender
Marwan Berrada
Philippe Urbain
Pierre Sarradon
David Curie
Kim Sabourin
Diane Marceau
C. Sender
Director
Marwan Berrada
Angioplasty and Angiography in
an inseparable combination!
Nexstep Medical
News
Stay informed of the latest news.
Successful First-in-Human using the All’InCath 035M
NexStep Medical announces the successful treatment of its patients as part of the First-in-Human experience. All patients were treated by it’s All’InCath 035M product and …
NexStep Medical receives 510(k) approval for the All’InCath 035M.
NexStep Medical received the FDA 510(k) approval for the All’InCath 035M balloon dilatation catheter used for percutaneous transluminal angioplasty (PTA). “After all these years of …
